Cutting method: Automatic, Spindle feeding along Y axis
Request a quote
Features

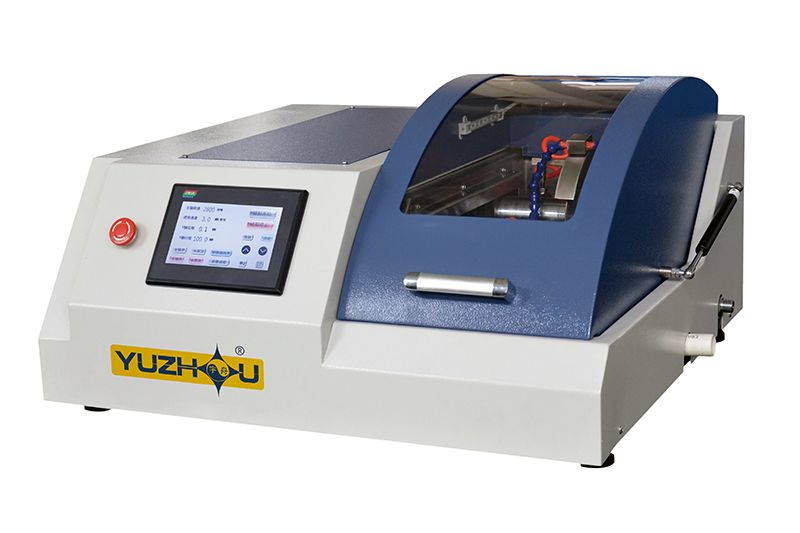

JMQ-60Z automatic precision cutter is controlled by single chip and it cuts along Y axis, featuring high positioning precision, wide speed regulation range and strong cutting ability.
Touch screen control, safety & limit switch and transparent safety shield always provide the safety guarantee for the cutting.

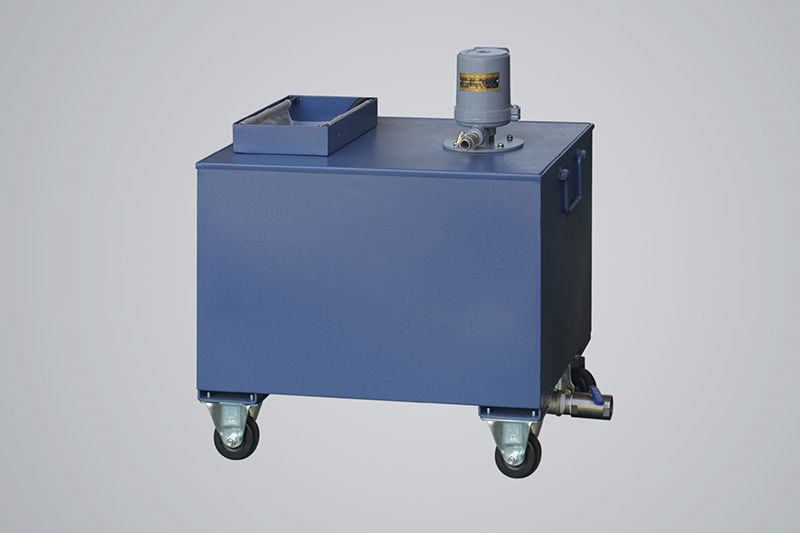

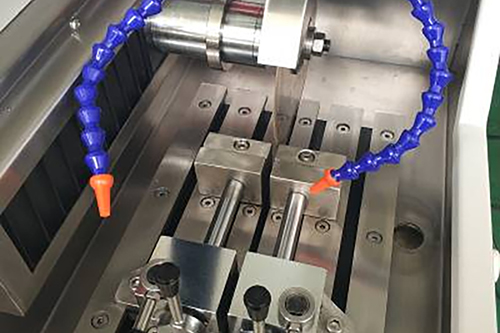

The recirculating coolant system provides coolant to the sample during the cut, enabling the surface of the spiecemen bright, smooth and free of heat damage.
Applications
JMQ-60Z automatic precision cutter is designed for precision cutting of a variety of materials, like metals, ceramic materials, crystals, cemented carbides, rocks, minerals, concrete, organic materials, biological materials (teeth, bones) and so on.
Technical Data
Feed speed: 0.7-36mm/min (adjusted in steps of 0.1mm/min, the max. speed is under zero load)
Y axix travel: 200mm
Cutting table: 320×225mm，12mm T-slot
Spindle span: 125mm
Spindle speed: 500-3000r/min

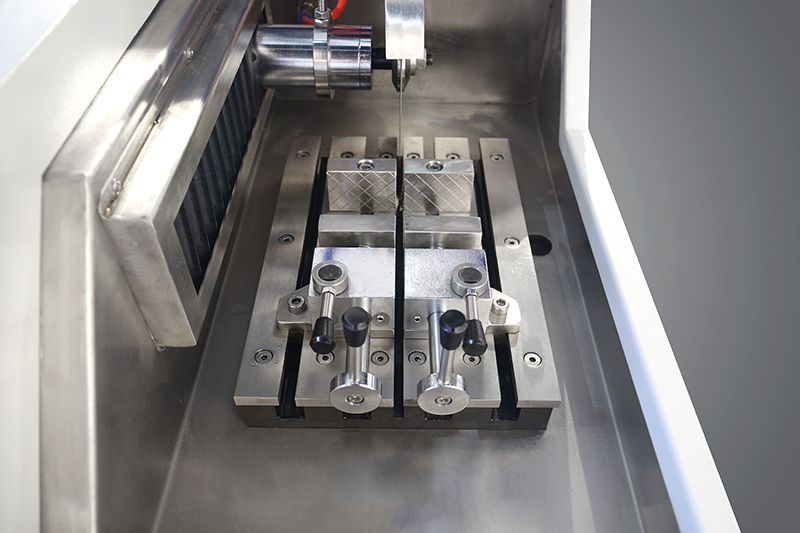

Clamping tool: quick clamp, jaw height: 45mm
Dimensions: 850×770×460mm
Net weight: 140kg
Water tank capacity: 36L
Pump flow: 12L/min
Water tank dimensions: 300×500×450mm
Water tank weight: 20kg
Optional Accessories

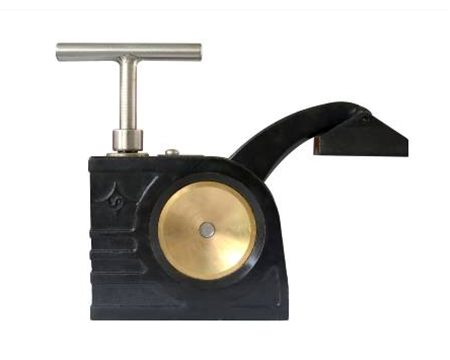

Vertical Clamping Vise

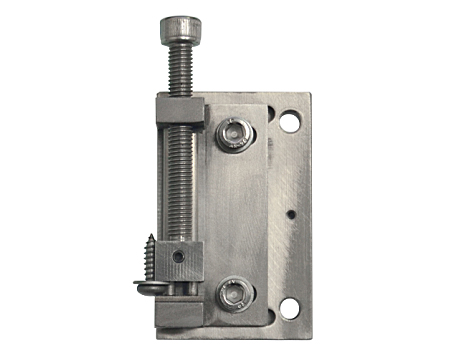

Fastener Vise

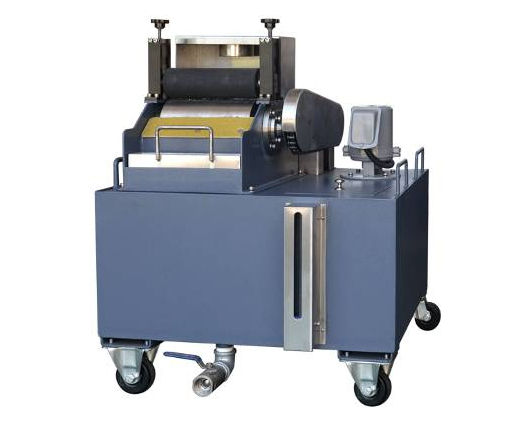

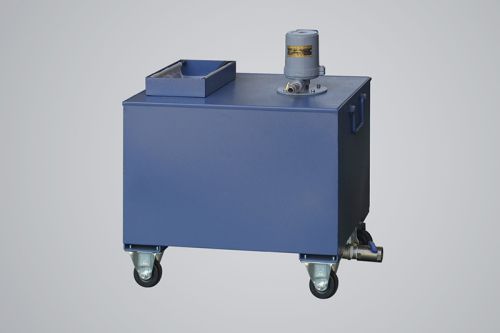

Magnetic Circulation Cooling Water Tank
