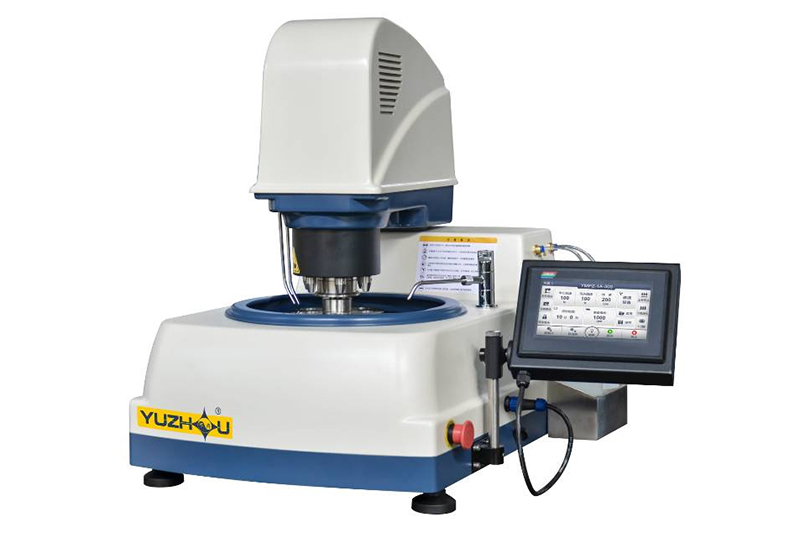

YMPZ-1A-300(250) Automatic Metallographic Sample Grinding and Polishing Machine, with Automatic Dosing
Metallographic Grinder & Polisher
The automatic metallographic sample grinding and polishing machine is designed to offer precision and efficiency in sample preparation. This grinding and polishing device features a durable ABS body, providing a modern and attractive design while being corrosion-resistant and long-lasting. The grinding disc is made from cast aluminum alloy, ensuring it remains oxidation-free and maintains its shape even under variable speeds. Supporting both clockwise and counterclockwise rotation, the automatic grinding system can effectively replace manual polishing tasks. It can hold up to six samples at a time, significantly saving labor while improving the quality and efficiency of the polishing process.
Request a quote
Features

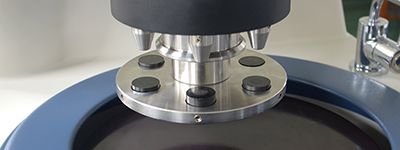

- Offers both central and single-point pressure options, allowing users to choose the best mode for different samples and working conditions
- Allows for easy installation and removal of sample holders, accommodating various sizes for flexible use
- Ensures perfect alignment between the sample and the grinding disc, solving multi-faceted issues and guaranteeing uniform grinding surfaces
- Offers a clear and intuitive interface, making operation simple and straightforward
- Includes programmable timed and speed settings, with an automatic water system that starts and stops as needed, replacing manual grinding and polishing
- Enhances safety and convenience with an automatic locking feature for the grinding head
- Provides high torque and quiet operation, ensuring long-lasting performance
- Stores over ten preset programs, allowing customizable settings for different samples
- The semi-rotating design with internal lighting makes placing and removing samples easy and efficient
- Enables fully automatic and precise polishing, improving sample preparation quality. The dual-suspension system ensures even distribution of the polishing liquid, resulting in consistent and high-quality finishes for your samples
- Prevents dirt and debris buildup, making maintenance easy and keeping the work area clean
Technical Data
Model | YMPZ-1A-300 | YMPZ-1A-250 |
Disc Diameter | 300mm | 254mm |
Abrasive Paper Diameter | 300mm | 250mm |
Disc Speed | 50-1000r/min (stepless speed) 250, 500, 750, 1000r/min (four speed) | |
Disc Rotational Direction | Clockwise and counterclockwise | |
Disc Electromotor | Servo motor, 220V, 1.5kW | |
Head Electromotor | Servo motor, 220V, 750W | |
Head Speed | 20-120r/min (stepless speed) | |
Timing Set | 0-99min | |
Sample Holder Quantity | 6 pcs | |
Sample Holder Sizes | ⌀25mm, ⌀30mm, ⌀40mm (choose one) or customized size | |
Pressure Method | Individual pressure and central pressure | |
Individual Pressure Force | 0-50N | |
Central Pressure Force | 0-160N | |
Control and Display | 7 inch LCD touch screen | |
Suspension Volume | 500ml, 2 bottles | |
Power Supply | 220V, 50Hz, 8A | |
Dimensions | 800×800×760mm | |
Net Weight | 96kg |
Optional Accessories
- Handheld Specimen Holder

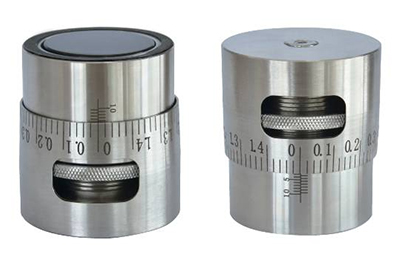

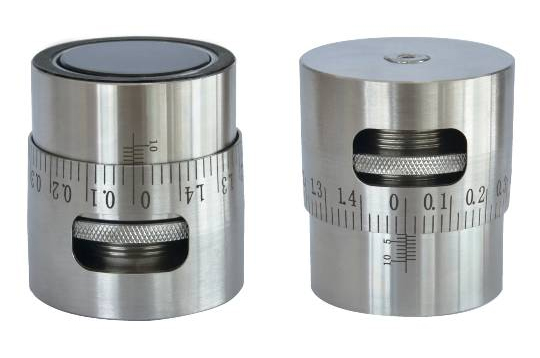

- Handheld Specimen Holder with Scale

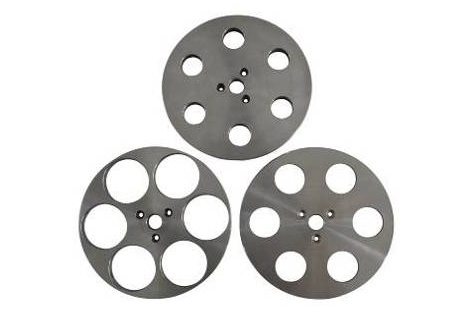

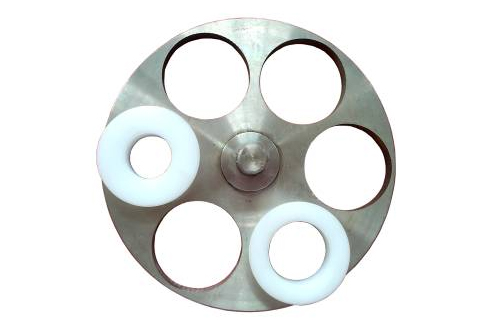

- Round Specimen Holder

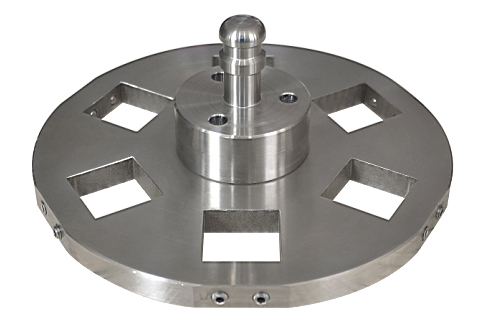

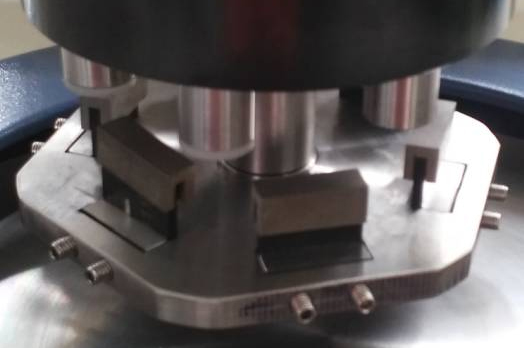

- Square Specimen Holder

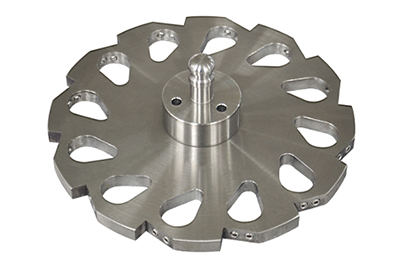

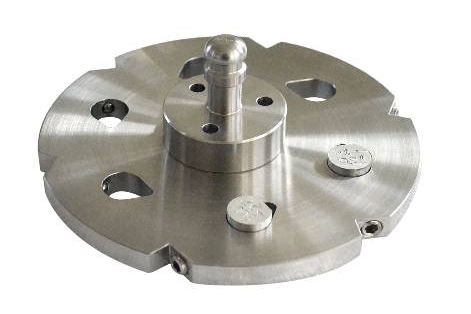

- Teardrop Specimen Holder

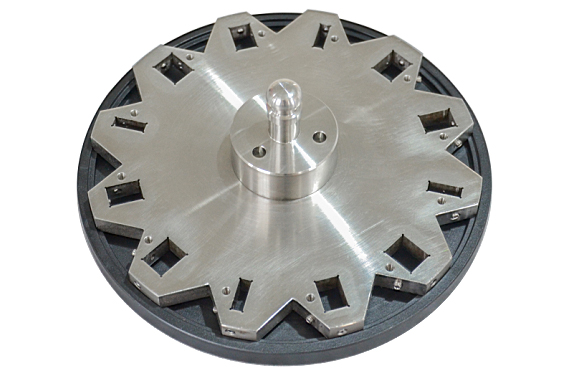

- 12-Hole Teardrop Specimen Holder

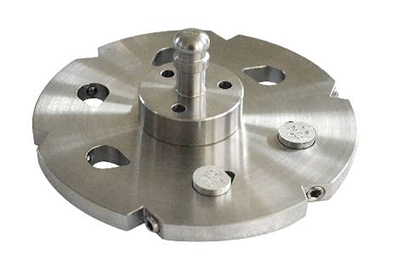

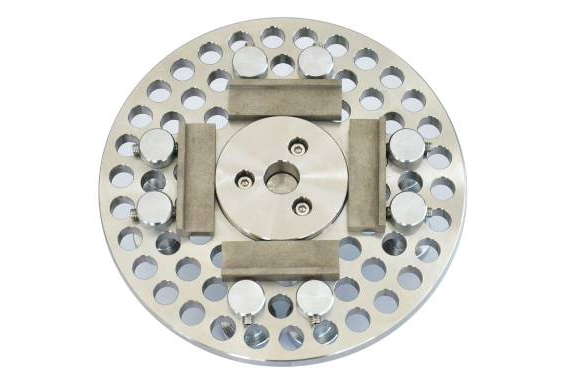

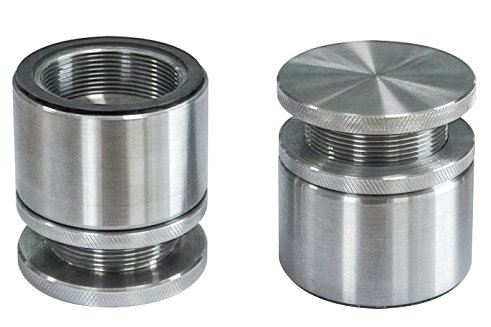

- Double Screw Specimen Holder
- 12-Hole Small Square Specimen Holder

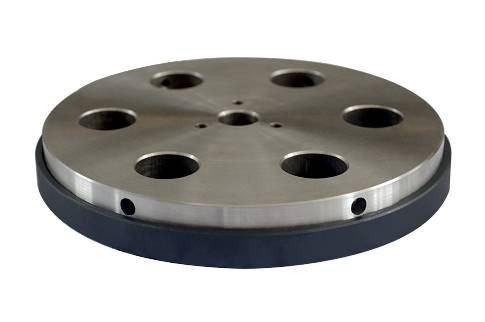

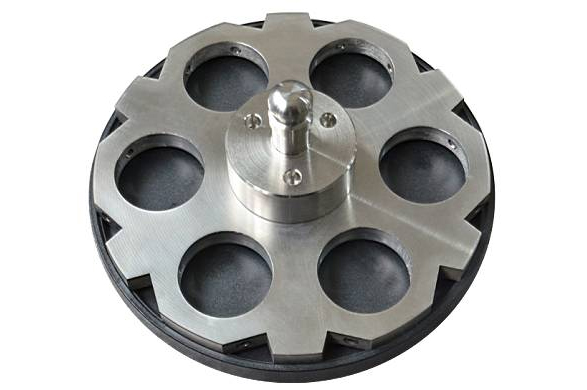

- Multi-Hole Specimen Holder
- Custom Thin Section Holder
- Leveling Plate

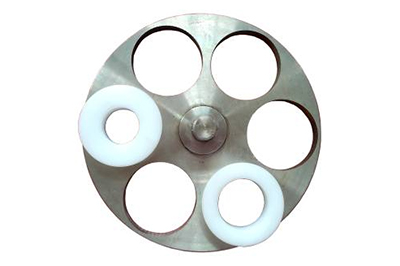

- Plastic Ring

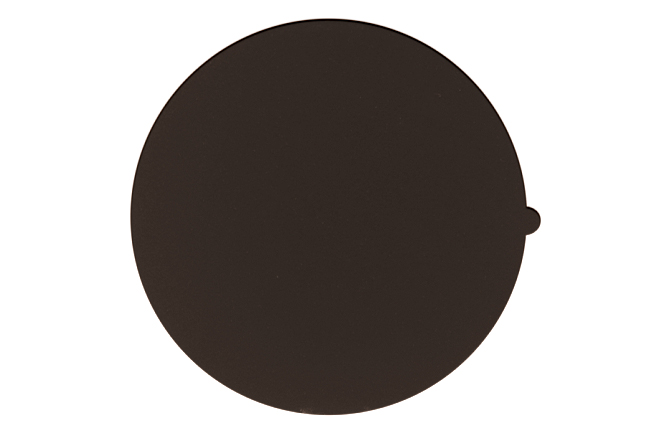

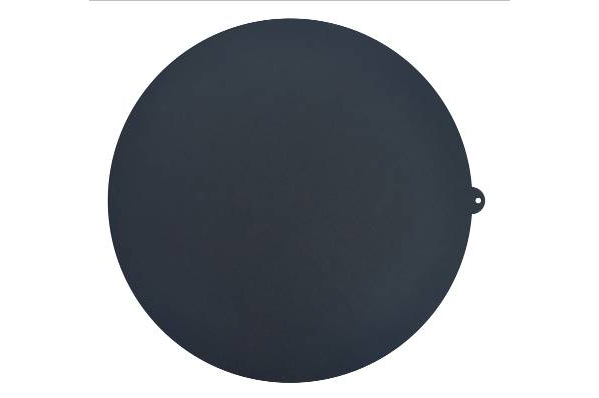

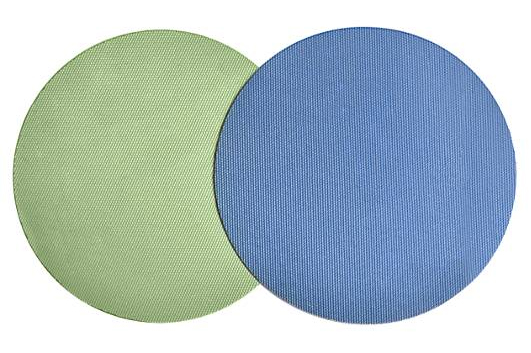

- Teflon-coated disc

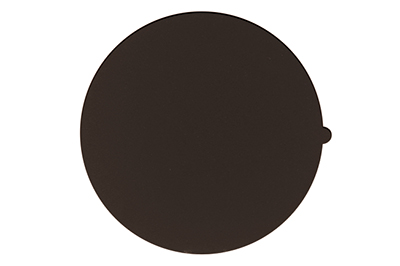

- Magnetic disc

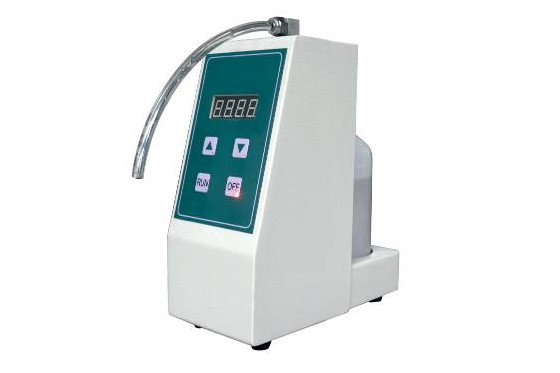

- Automatic fluid dispenser

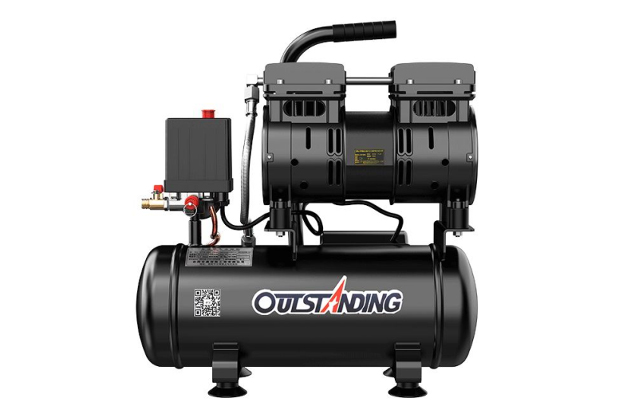

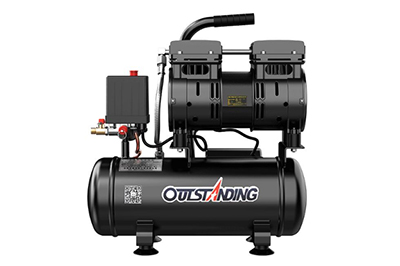

- Air compressor

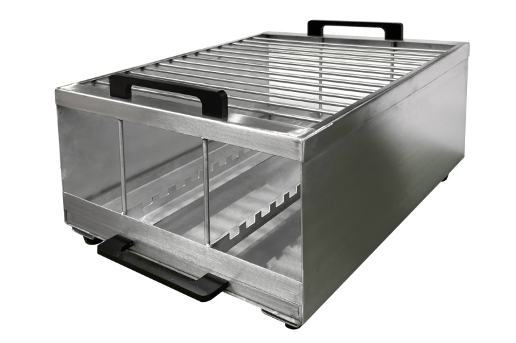

- Drying Rack

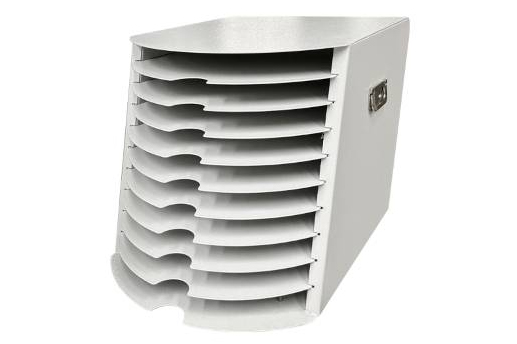

- Sandpaper Storage Rack (10 Layers)

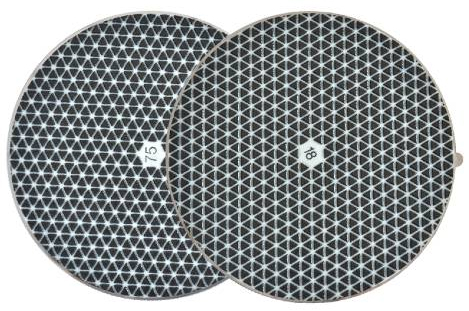

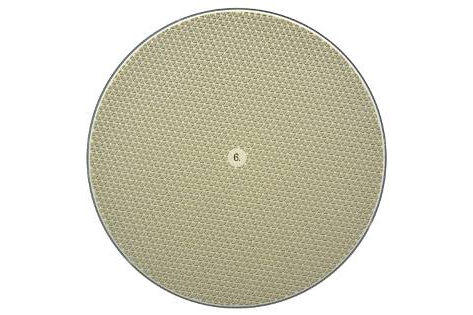

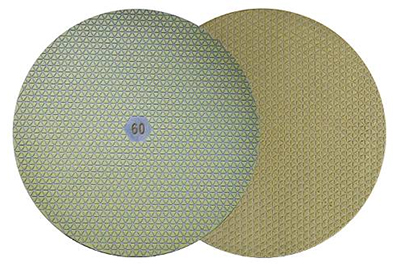

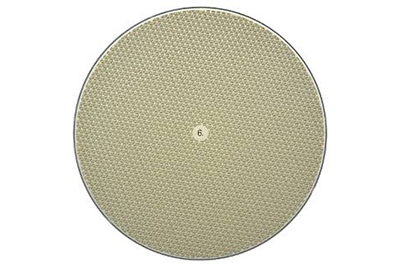

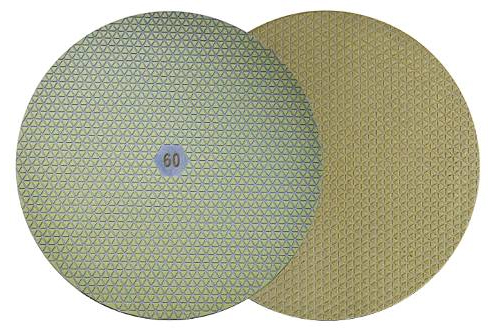

- Diamond Grinding Disc
- Diamond Grinding Disc (Imported Material)
- Swiss Imported Diamond Grinding Disc (M Series)
- Swiss Imported Diamond Grinding Disc (S Series)

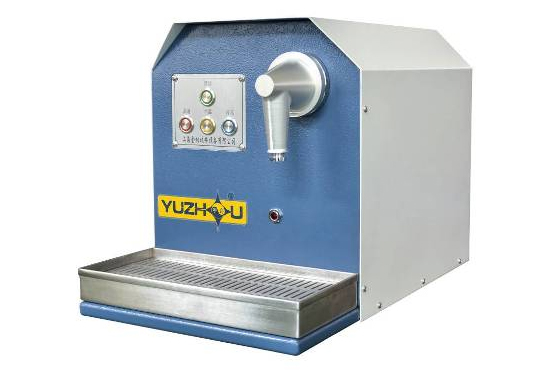

- Dryer
