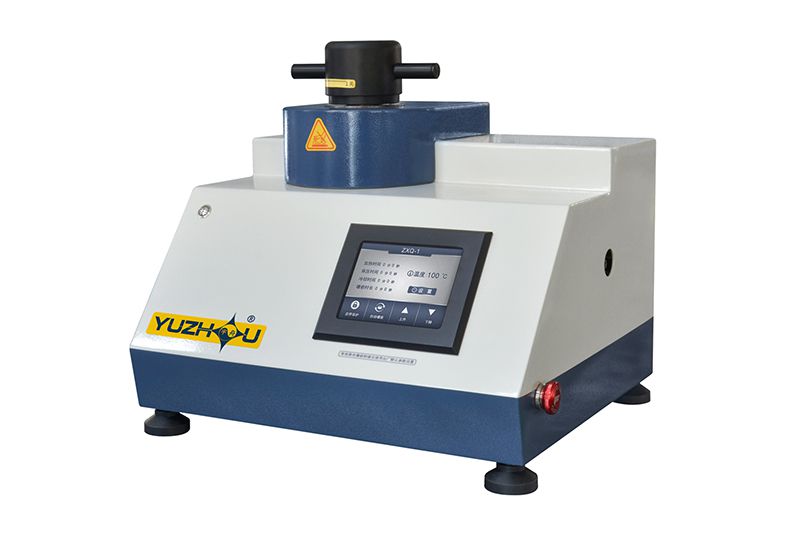

ZXQ-1 Hot Mounting Press, Mechanical Type

Metallographic Compression Mounting Press

ZXQ-1 Hot mounting press features automatic mechanic compression and the mounting process is automatically controlled by programs to achieve one-button operation of heating, pressure loading, holding, cooling and unloading. This requires no operators on duty, thus saving labor. In addition, the metallographic compression mounting press comes with sound and light alarm functions.

Request a quote

Features

This metallographic compression mounting press adopts gear motor for stable pressure.
Water cooling system is equipped for fast mounting, easy operation and stable performance. It is ideal equipment for mounting samples.

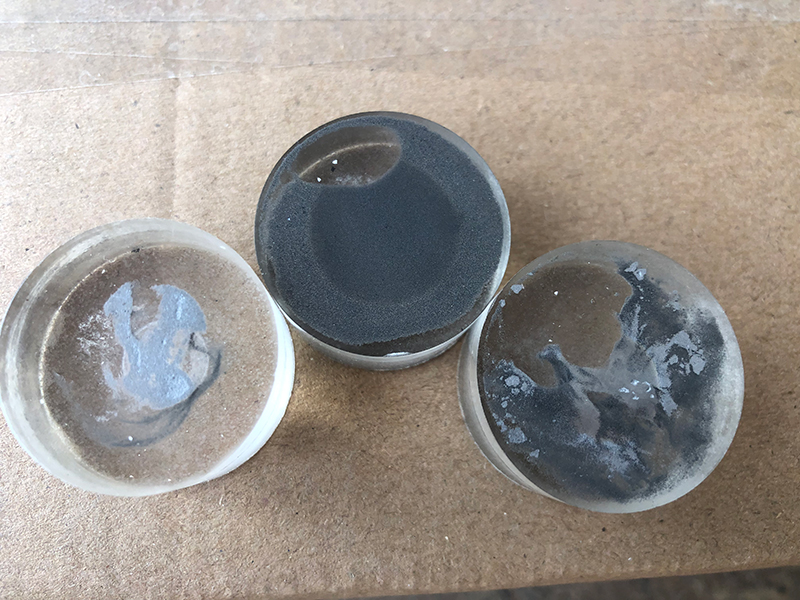

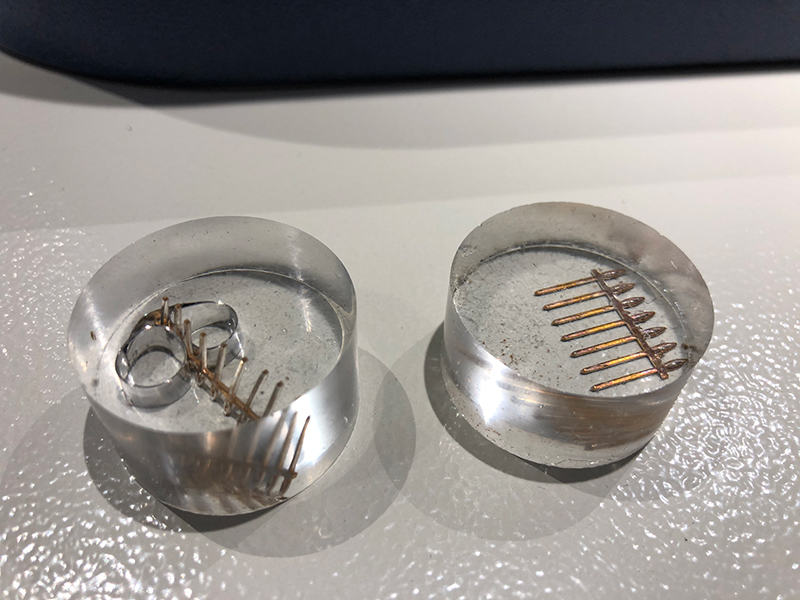

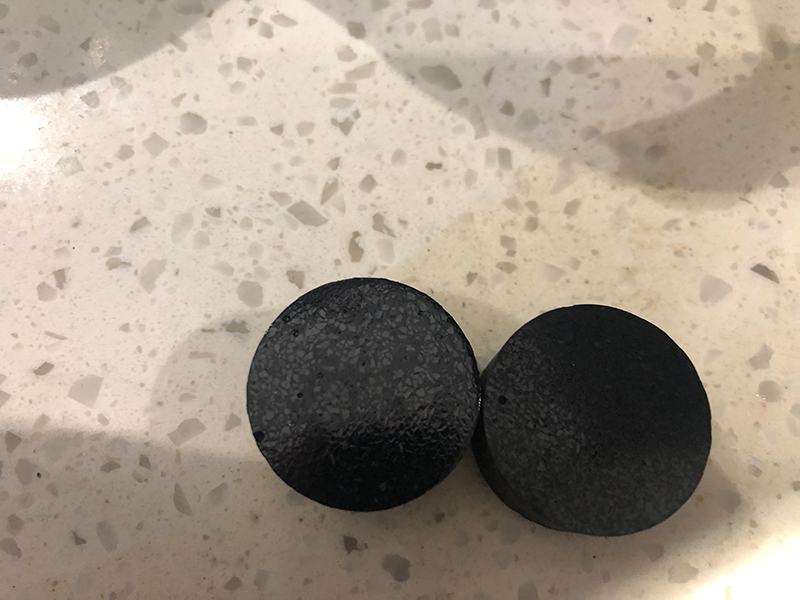

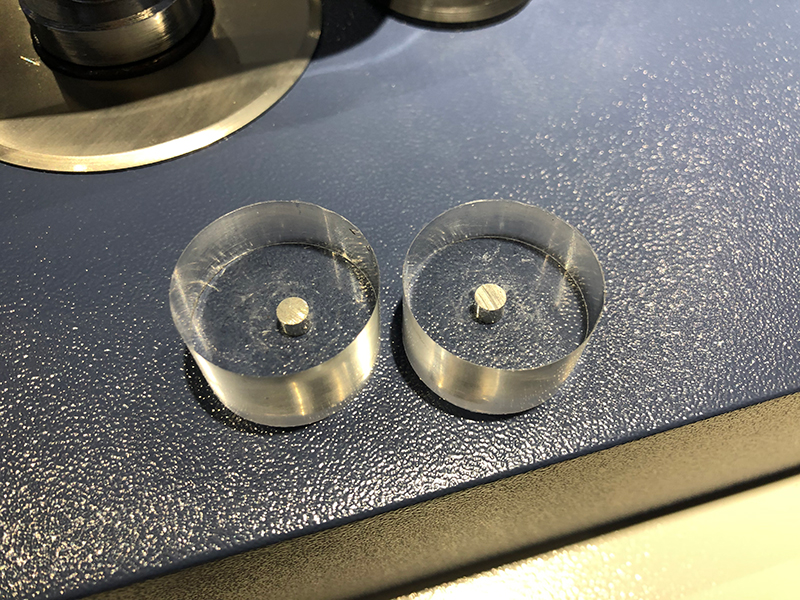

Samples

Specifications

Mounting mould size: Ф25mm, Ф30mm, Ф40mm (choose one)

Cavity height: 115mm, effective height is 60mm

Heating power: Ф25mm/Ф30mm: 1.2kW; Ф40mm: 1.6kW

Pressure: mechanical loading, 130bar

Electromotor power: 120W

Heating temperature: 50~180℃

Heat time: 0~8min

Hold time: 30s~60min

Cooling time: 0~8min

Cooling method: external water source

Dimensions: 463×402×430mm

Net weight: 50kg
