QG-3 Metalloraphic Abrasive Cutter, Manual

Abrasive Cut-off Machine

QG-3 Metalloraphic Abrasive Cutter, Manual
  • QG-3 Metalloraphic Abrasive Cutter, Manual
  • QG-3 Metalloraphic Abrasive Cutter, Manual
  • QG-3 Metalloraphic Abrasive Cutter, Manual
    • Cut-off wheel: Φ300×2×Φ32mm
    • Max. cutting capacity: 85×85mm
    • Motor: three-phase four-wire asynchronous motor, 3 kW
    • Cutting method: manual, gravity feeding
    Request a quote
    Features
    • QG-3 manual metalloraphic abrasive cutter performs cutting by pulling the spindle and using gravity, featuring fast rotation speed and strong cutting ability.

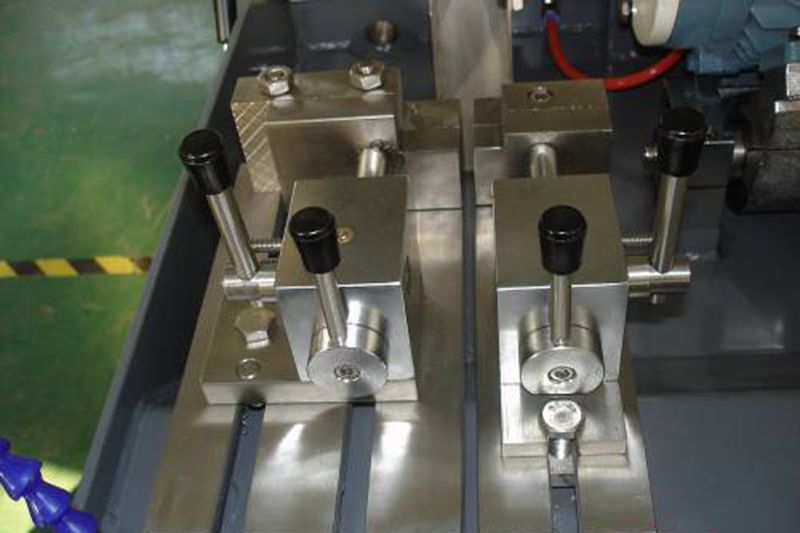

    • Stainless steel double-sided clamp with a jaw height of 60mm offers long service life, easy maintenance, firm fixing of sample and improved stability.
    • The cover comes with a left side opening for cutting long strip samples.
    • Transparent shield with built-in LED lamp is convenient for observation when cutting.
    • The recirculating coolant system provides coolant to the sample during the cut, enabling the surface of the spiecemen bright, smooth and free of heat damage.

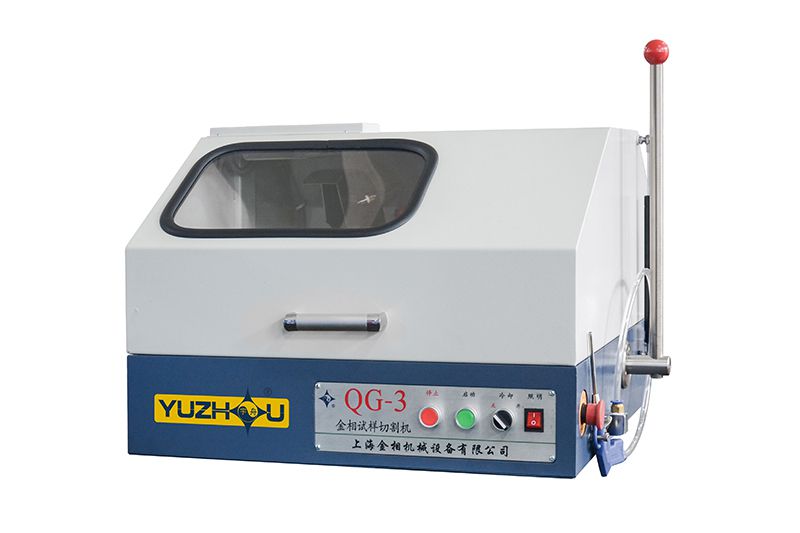

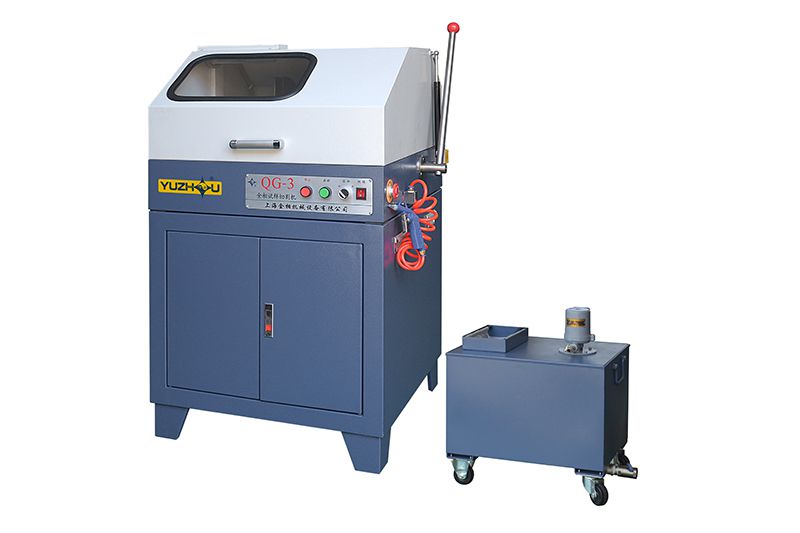

    • Benchtop or floor type are optional for customers to choose.
    Applications

    QG-3 abrasive cut-off machine is specially developed for cutting ordinary metallographic and petrographic materials.

    Technical Data
    • Spindle rotating speed: 2800r/min
    • Cutting table: 204×240mm with 12mm T slot
    • Clamping tool: quick clamp, jaw height: 60mm
    • Dimensions: 730×700×540mm (floor type: 750×730×1200mm)
    • Net weight: 125kg (floor type 180 kg)
    • Water tank capacity: 60L
    • Pump flow: 25L/min
    • Water tank dimension: 565×360×600mm
    • Water tank weight: 27 kg
