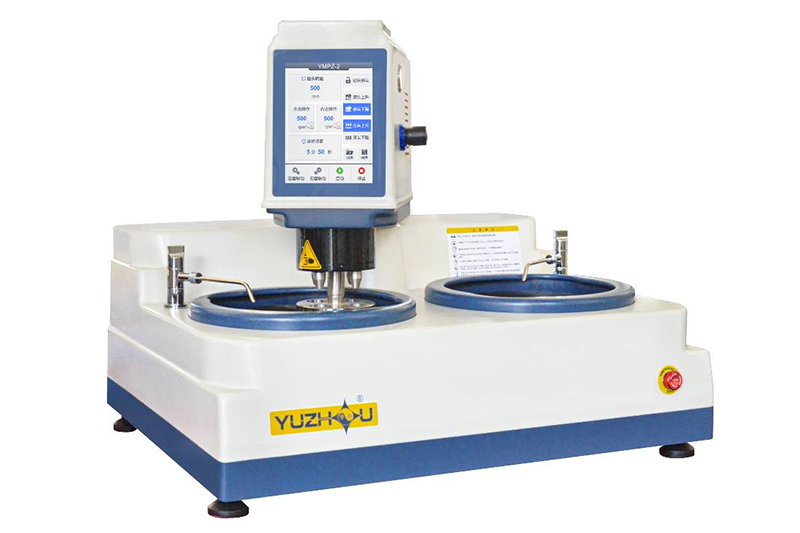

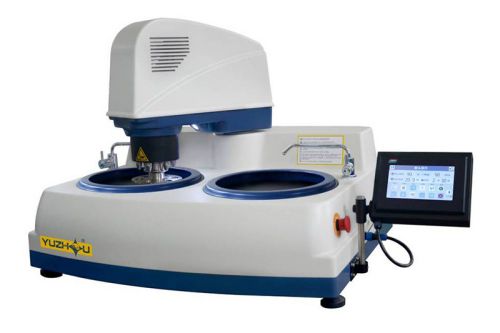

YMPZ-2 Grinder and Polisher for Sample Preparation, with Automatic Flushing

Automated Grinding and Polishing System

YMPZ-2 grinder and polisher is an automatic grinding and polishing system, with function of automatic flushing. The grinding/polishing pressure (single pressure) can be continuously adjusted. The automatic grinding and polishing system effectively replace manual operation and sample holder can clamp up to 4 samples. This reduces labor cost and improves grinding and polishing quality and efficiency, making this machine ideal for metallographic sample preparation.

Request a quote

Disc diameter: 230mm
Abrasive paper diameter: 230mm
Disc speed: steplessly adjustable within 100~1000r/min; or four gear speed: 250, 500, 750, 1000r/min
Rotation direction: clockwise or counterclockwise
Disc electromotor: DC brushless motor, 220V, 600W
Platen electromotor: Stepper motor, 200W
Platen speed: steplessly adjustable within 20~120r/min
Timing set: 0~99min
Sample holding qty.: 4 pcs
Sample holder specification: Φ25mm, Φ30mm, Φ40mm (choose one) or customized size
Pressing mode: Single pressing force
Pressing force: 0~60N
Display and control: 8 inch touch screen, with automatic locking of the grinding head and washing function
Dimensions: 757×660×630mm
Net weight: 78kg

• YMPZ-2 automated grinder and polisher is controlled by single chip and its body is formed by ABS material.
• Robust supporting base ensure precise rotating balance.

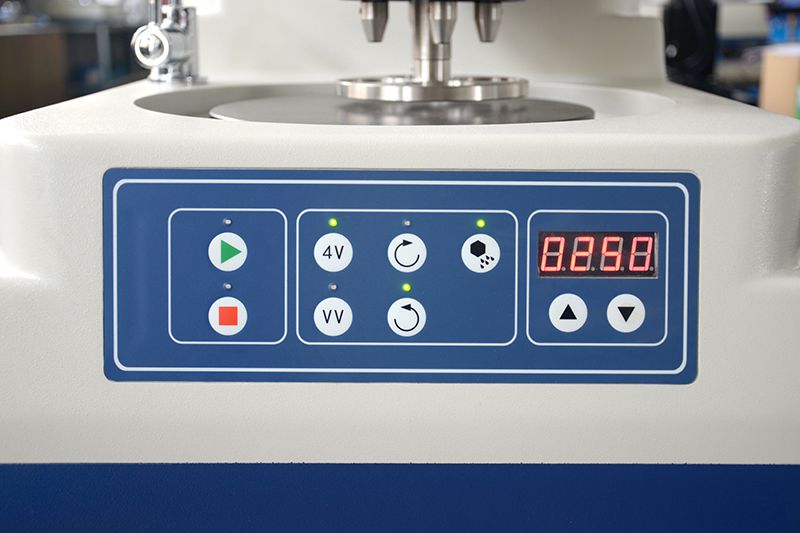

• Variable speed: stepless adjustment or four gear speed is available. And the rotation direction is changeable.
• Dc brushless motor offers long service life and low noise. The powerful motor torque brings strong power for efficient grinding and polishing.

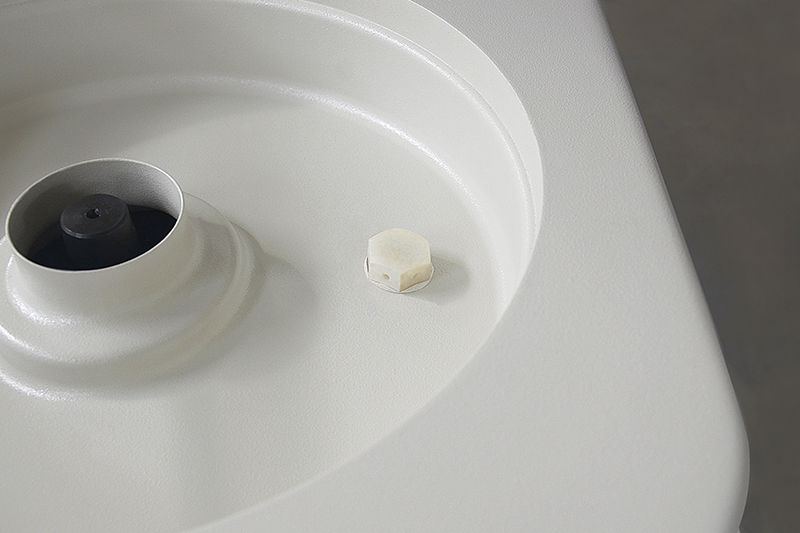

• Spindle adopts leak proof design to ensure no damge to the bearing.
• Cooling water pipe can be rotated for wet grinding.
• The grinding disc can be disassemble for washing, preventing the accumulation and precipitation of grinding materials.
• Magnetic grinding disc supports fast disc changing for different size. The disc surface is Teflon coated, leaving no residue while changing abrasive paper or polishing cloth.
• Grinding head features electric locking mechanism for timing function, fast and convenient.
