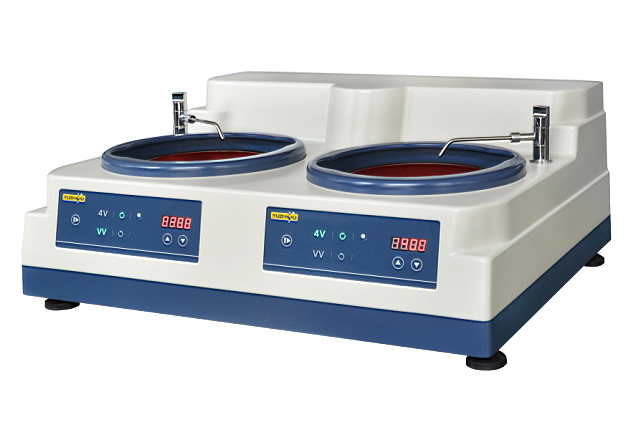

YMP-2 Grinder and Polisher for Sample Preparation

Manual Grinding and Polishing System

YMP-2 Grinder and polisher is designed for sample preparation, and is controlled by single chip. The two discs are operated and controlled independently and the case is formed with ABS material for beautiful appearance, corrosion proof and durability.

Request a quote

Disc diameter: 230mm
Abrasive paper diameter: 230mm
Speed: steplessly adjustable within 100~1400r/min; or four gear speed: 300, 600, 900, 1400r/min
Rotation direction: clockwise or counterclockwise
Electromotor: DC brushless motor, 220V, 600W
Display and control: Touch panel, with washing function
Dimensions: 757×660×330mm
Net weight: 57kg

• This grinder and polisher comes with manual operation, dual indepentally-controlled wheel, stepless adjustment.
• Robust supporting base ensures precise rotary balance.
• Variable speed: stepless adjustment or four gear speed is available. And the rotation direction is changeable.
• DC brushless motor offers long service life and low noise. The powerful motor torque brings strong power for efficient grinding and polishing.
• Spindle adopts leak proof design to ensure no damge to the bearing.
• Water pipe can be rotated for wet grinding.
• The grinding disc can be disassemble for washing, preventing the accumulation and precipitation of grinding materials.
• The operation of coarse grinding, fine grinding and polishing can be completed easily by changing abreasive paper and polishing cloth.
