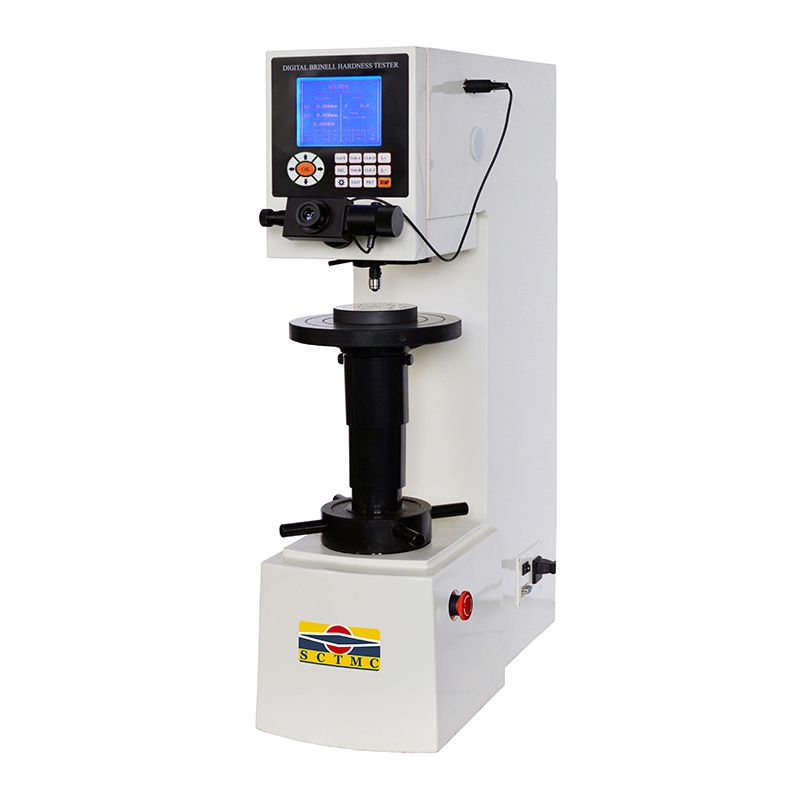

XHB-3000 Digital Brinell Hardness Tester, Semi-Automatic Type

Hardness Testing Machine

XHB-3000 Digital Brinell Hardness Tester, Semi-Automatic Type
Request a quote
  • Test force range: 62.5kgf (612.9N) ~ 3000kgf (29420N)
  • This semi automatic digital Brinell hardness tester adopts load cell control system for loading test force, which is fed back by a 0.5.‰ precision sensor.
  • Controlled by CPU, it automatically compensates the force lost during the test.
  • Indentation can be observed and measured through the eyepiece. The touch screen displays the test force, indentation length, dwell time, test number, conversion scale and test date.
Request a quote
  • During the testing, the measured data can be automatically calculated for minimum, maximum and average value.
  • Test results can be stored for checking in a table or to be printed out by built-in printer.
  • Conversion scales allows selection for various scales of hardness.
  • RS232 port is designed for connecting to the computer for data output.
  • CCD camera is optional.
Applications

XHB-3000 Hardness tester is ideal for measuring cast iron, steel, nonferrous metals, soft alloys and non-metal materials like rigid plastics, bakelite, etc.

Technical Data
  • Test force: 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf
    612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N
  • Max. sample height: 215mm
  • Test range: 3.18～653HBW
  • Hardness reaaading: LCD display
  • Hardness resolution: 0.01HBW
  • Conversion scale: HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS
  • Data optput: built-in printer, RS232 interface
  • Microscope: 20× digital measuring eyepiece, 1× objective
  • Effective field of view: 6mm
  • Min. measuring unit: 0.001mm
  • Dwell time: 0~60s
  • Throat depth: 135mm
  • Eecute standard: ISO 6506, ASTM E10, JIS Z2243, GB/T 231.2
