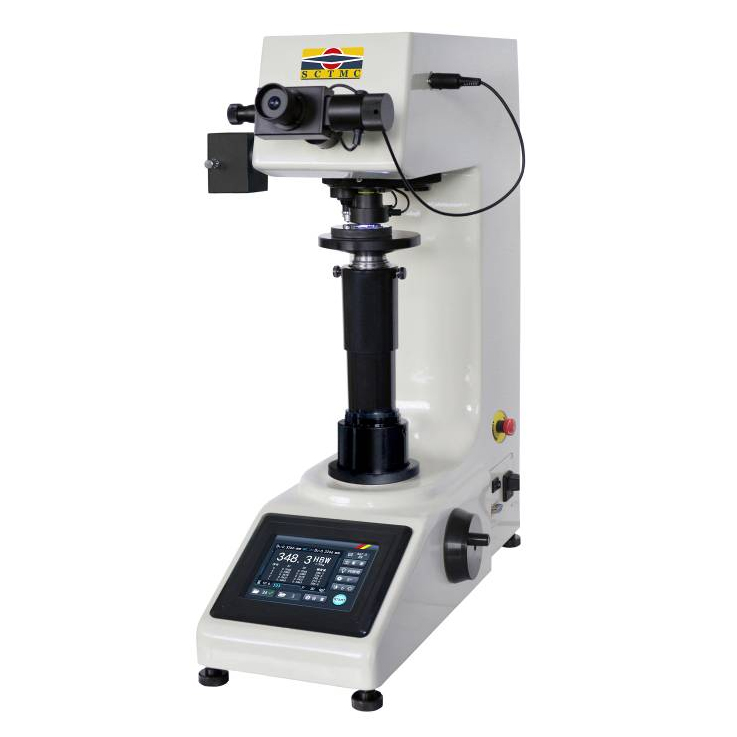

601XHB Digital Brinell Hardness Tester
Hardness Testing Machine
Request a quote
The digital Brinell hardness tester offers precision and efficiency for various industrial applications. This advanced machine seamlessly combines optical, mechanical, and electronic systems to meet your hardness testing needs.
With its new high-resolution color touchscreen, the tester is easy to use, providing a clear and intuitive interface. The adjustable backlight and energy-saving mode make it user-friendly, ensuring accurate results with minimal effort.
Request a quote
Features
- Offers eight levels of test force and nine selectable Brinell scales, making it flexible enough to handle a wide range of materials
- Equipped with two sets of objectives (5x and 10x), which can be used for precise measurement, enhancing testing versatility
- Seamlessly switches between objectives and the indenter, ensuring smooth and efficient testing processes
- Allows for presetting of test force dwell time and adjustment of light source intensity to meet specific testing needs
- Halogen and LED lamps provide optimal illumination for various sample surfaces, ensuring a clear field of view
- The touchscreen displays measurement scales, indentation length, hardness value, and conversion scales clearly, simplifying data interpretation
- Saves test results in real time, with options for data classification, deletion, and print output. Automatically calculates maximum, minimum, and average values
- Equipped with an RS232 interface for seamless computer connectivity, and can be optionally fitted with a CCD image automatic measurement system for enhanced accuracy
Applications
Ideal for a wide range of applications, including:
- Metallurgy: Suitable for testing the hardness of cast iron, steel, non-ferrous metals, and soft alloys
- Manufacturing: Essential for quality control in the production of hard plastics and bakelite, ensuring product durability and reliability.
- Research & development: An indispensable tool for R&D departments looking to innovate and improve material properties through precise hardness measurements.
Technical Data
Model | 601XHB | |
Test Force | kgf | 1kgf, 5kgf, 6.25kgf, 10kgf, 15.625kgf, 30kgf, 31.25kgf, 62.5kgf |
N | 9.807N, 49.03N, 61.29N, 98.07N, 153.2N, 294.2N, 306.5N, 612.9N | |
Test Range | 3.18-653HBW | |
Hardness Resolution | 0.1HBW | |
Data Output | Built-in printer, RS232 interface | |
Conversion Scale | HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HBW, HV, HK, HS, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HBS | |
Loading Method | Automatic (Loading/Dwell/Unloading) | |
Turret | Automatic shifting | |
Eyepiece | 10× digital measuring eyepiece | |
Objective | 5×, 10× | |
Total Magnification | 50×, 100× | |
Effective Field of View | 50×: 1.6mm, 100×: 0.8mm | |
Min. Measuring Unit | 50×: 0.5μm, 100×: 0.25μm | |
Dwell Time | 0-60s | |
Light Source | Halogen lamp / LED | |
Max. Sample Height | 185mm | |
Throat Depth | 130mm | |
Power Supply | AC220V, 50Hz | |
Execute Standard | ISO 6506, ASTM E10, JIS Z2243, GB/T 231.2 | |
Dimension | 530×240×630mm Packing dimension: 620×450×760mm | |
Weight | Net weight: 35kg Gross weight: 47kg |
