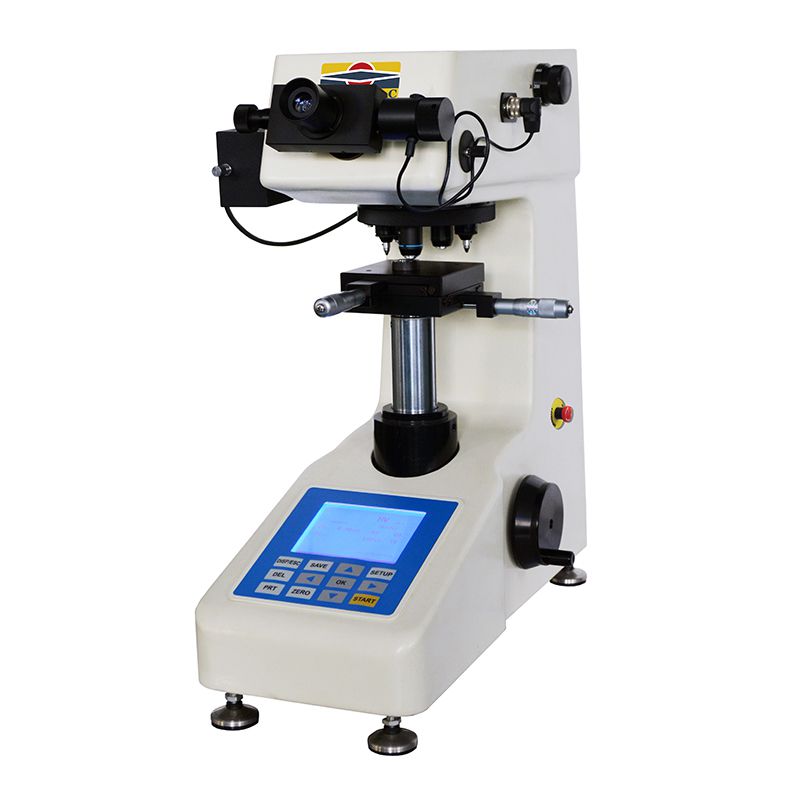

404SXV Digital Micro Vickers Hardness Tester, with Touch Screen
Request a quote
  • Test force range: 10gf (0.098N) ~ 1000gf (9.80N)
  • New automatic turret structure equips two Micro Vickers and Knoop indenters.
  • LCD touch screen dispalys the test method, test force, indentation length, dwell time, test number, conversion scale, test date.
  • During the testing, the hardness value is automatically calculated and shown on the screen.
  • The test result can be stored for checking or be printed through the built-in printer. A RS232 interface is designed to connect to the computer for output.
  • LCD video measuring device and CCD image automatic measuring system are optional.
Request a quote
Applications

404SXV Digital micro Vickers hardness tester is suitable for the hardness testing of ferrous metals, non-ferrous metals, IC thin sections, coatings, ply-metals, and glass, ceramics, agate, precious stones, thin plastics, as well as the depth and trapezium of the carbonized layers and quench hardened layers.

Technical Data
  • Test force: 10gf (0.098N), 25gf (0.246N), 50gf (0.49N), 100gf (0.98N), 200gf (1.96N), 300gf (2.94N), 500gf (4.90N), 1000gf (9.80N)
  • Max. sample height: 90mm
  • Test range: 1HV~2967HV
  • Hardness resolution: 0.1HV
  • Test mode: HV/HK
  • Loading method: automatic (loading/dwell/unloading)
  • Turret: automatic shafting (two indenters, four objectives)
  • Conversion scale: HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW
  • Data output: built-in printer, RS232 interface
  • Hardness reading: large LCD display, and data can be stored
  • Objective: 10× (observe), 20× (measure), 40× (measure), 40× (measure)
  • Eyepiece: 10× digital measuring eyepiece
  • Total magnification: 100×, 200×, 400×, 400×
  • Effective field of view: 20×: 400μm, 40×: 200μm
  • Min. measuring unit: 20×: 0.03μm, 40×: 0.02μm
  • Dwell time: 0~95s
  • Light source: Halogen lamp
  • X-Y test table: 100×100mm; travel: 25×25mm, resolution: 0.01mm
  • Throat depth: 100mm
  • Execute standard: ISO 6507, ASTM E384, JIS Z2244, GB/T 4340.2
