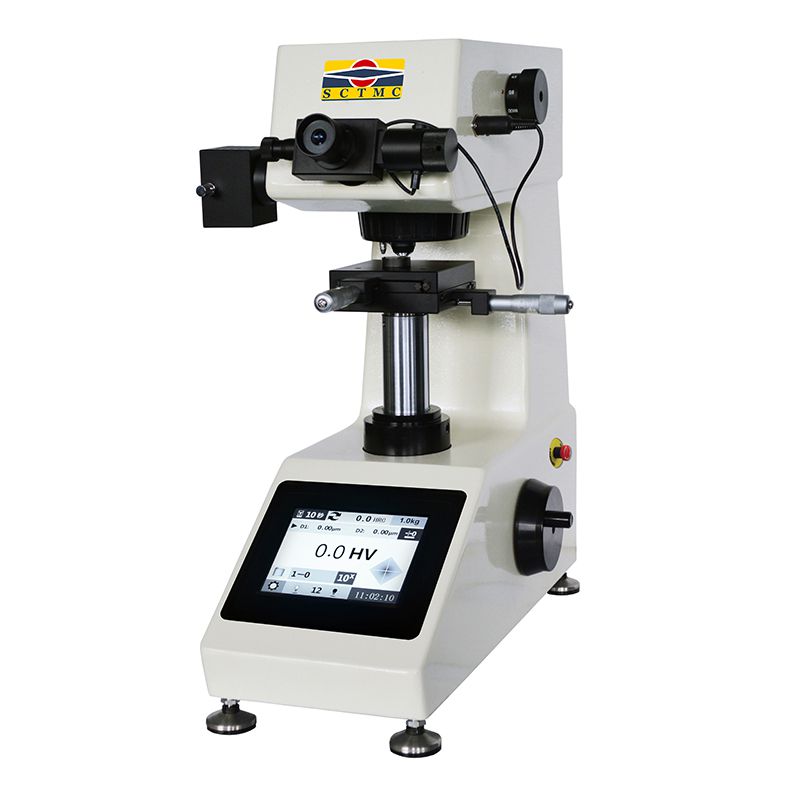

MHV-1000Z Digital Micro Vickers Hardness Tester, with Touch Screen

Hardness Testing Machine

MHV-1000Z Digital Micro Vickers Hardness Tester, with Touch Screen
Request a quote
  • Test force range: 0.5kgf (4.90N) ~ 50kgf (490N)
  • MHV-1000Z Digital micro Vickers hardness tester adopts unique precision design of optics, mechanic and electrics for clear indentation image and accurate measuring.
  • Digital measuring eyepiece is equipped.
  • High resolution color touch screen features intuitive and clear display, easy operation, adjustable backlight and energy-saving mode.
  • LCD touch screen dispalys the test method, test force, indentation length, dwell time, test number, conversion scale, test date.
Request a quote
  • During the testing, the hardness value is automatically calculated and shown on the screen.
  • The test result can be stored automatically in real time for checking or be printed out by the built-in printer. A RS232 interface is also designed to connect to the computer for output.
  • Knop indenter can be used for Knoop hardness testing. 2kgf test force is customized.
  • LCD video measuring device and CCD image automatic measuring system are optional.
Applications

MHV-1000Z Digital micro Vickers hardness tester is suitable for the hardness testing of ferrous metals, non-ferrous metals, IC thin sections, coatings, ply-metals, and glass, ceramics, agate, precious stones, thin plastics, as well as the depth and trapezium of the carbonized layers and quench hardened layers.

Technical Data
  • Test force: 10gf (0.098N), 25gf (0.246N), 50gf (0.49N), 100gf (0.98N), 200gf (1.96N), 300gf (2.94N), 500gf (4.90N), 1000gf (9.80N), 2kgf (19.6N)
  • Max. sample height: 90mm
  • Test range: 1HV~2967HV
  • Hardness resolution: 0.1HV
  • Test mode: HV/HK
  • Loading method: automatic (loading/dwell/unloading)
  • Turret: automatic shafting of indenter and objective
  • Conversion scale: HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW
  • Data output: built-in printer, RS232 port
  • Hardness reading: color touch screen, and data can be stored
  • Objective: 10× (observing), 40× (measuring)
  • Eyepiece: 10× digital measuring eyepiece
  • Total magnification: 100×, 400×
  • Effective field of view: 200μm
  • Min. measuring unit: 0.06μm
  • Dwell time: 0~60s
  • Light source: Halogen lamp
  • X-Y table: Size: 100×100mm, travel: 25×25mm, resolution: 0.01mm
  • Throat depth: 100mm
  • Execute standard: ISO 6507，ASTM E384，JIS Z2244，GB/T 4340.2
